Everglades Patriot 1000 Wood Burning System
Electronically solid state controlled - 65 Watts
(This unit has more power than many other burners and at a great price!)
Temperature Dial for all burning styles
Unit consists of a heavy-duty burning pen cord, one heavy-duty spear tip burning pen, & a pen holder.
Pen is fixed tip with comfortable foam grip
* $16 for shipping to any address in the US.
100% Warranty for one year on control box
Second year - parts are free with a minimal labor charge. Since we have no control over their proper usage, warranty on pen burn out is 90 days and cords are guaranteed against defects for 30 days .
The control box has a port that is suitable for all Burnmaster and Detail Master pens. The cord included with the unit accepts most other major brands of burning pens as well as the pen that is included with the package.
*Razertip pens may be used with an adapter plug.
If necessary, special cords with screw lugs or RCA plugs are available.
Q. Why is only one burning pen included in this package?
A. This basic unit is packaged to my specifications - I do almost all of my burning with only one pen shape!
Of course, other pens are available, and you can use almost any handpieces you currently own.

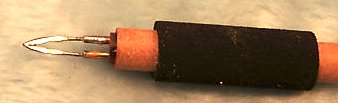

This is the "Bonnie Gibson Signature Model" spear tip burning pen that is included with each woodburning unit. Tip length may vary slightly.
Spear Pen - $19
The knife shape is similar to the spear point, it's a bit thinner and has one sharpened, slightly curved burning edge. $19
Other Optional Pen Styles - standard pens are $19 each, special shapes are a bit higher.
The writing tip is made from a round wire and is not sharp, this way you can use a natural writing motion - similar to writing with a ball point pen. May also be used to burn small dots. $19
"Micro-Writing" tip. This one is finer than the regular writing tip for more intricate burning. $19
The bent round tip shader pen is useful for shading - the bend in the tip allows you to hold the pen at a comfortable angle for shading. The burning surface is flat. $19
"Spoon" tip. It's hard to see in the photo, but the tip of this pen is acutally convex like the bottom of a spoon. This is great for soft shading. $19
New - Bent tip shaders in SPEAR and SQUARE tips
The spear tip shader is similar to the spear pen that comes with the burner, but it is angled so that the pen may be held at a comfortable angle for shading. The fine tip lets you shade in tiny corners and spaces.
The square tip shader is also bent at an angle, but has a large squared end for burning and shading next to lines.
Bent Tip Shader Spear Bent Tip Shader Square
The Skew shape is similar to the knife point shown above, but it's got a squared off lower heel and the burning edge is straight. $19
Circle Burning tips
These pens will burn perfect circles quickly and neatly. Two sizes to choose from, 1/8" and 3/16". $22 each
This is a larger, heavier unit than the Patriot 1000 burner, and has some nice features for those that do extensive pyrography and want a heavy duty unit.
The Hawk has a micro-head adjustment feature that allows you to raise or lower the wattage delivered when using very lightweight or heavy burning pens, and can deliver up to 130 watts of power. It has a reset/fuse button to prevent power overloads. This unit uses the same type of cord as the burner shown above, and will accept pens from all other brands (Razertip pens require the use of the included RCA adapter plug).
The included pen accepts all "hot wire" replaceable tips made by all other manufacturers, and comes with 10 replaceable tips that change easily with a simple screwdriver. The newly redesigned pen (not shown) has a slightly slimmer handle than previous models.
Warranty: 3 year- power supply, 1 year - pen $210
* $15 for shipping to any address in the US.
Note: This unit is also available without the pen, and the pen is available without the unit.
Pen and 10 tips: $88 Base unit only (includes cord and adapter plug, but no pens) : $183 Shipping is extra.
Please contact us to order a woodburner. (Due to packaging requirements, woodburners are usually shipped separately from other Arizona Gourds purchases.)
Keep your burning pen tips clean and sharp with this Cleaner/Strop combo. Use the fine sandpaper side to remove heavy carbon deposits. Rub the included compound onto the leather side, then strop the pen tip across the surface several times to keep the tip sharp and performing at its best.
The small Strop is about 7" long x 3/4" wide. The 1 oz. compound is a 1000 grit blend that will keep all your pens (and knives too!) honed to a keen edge.
Pen Cleaner/Strop and Compound $8
1) You will need to turn the heat up slightly on both circle burning pens and ball tip burning pens.
2) The 1.5mm size is perfect for making faux stitching holes in the leather tooling technique.
Replacement Heavy Duty Handpiece CORD $23
The cord has a radio plug on one end that will also fit Nibsburner, Optima and Colwood pens. You will need to buy an adapter plug to use Razertip pens in this cord.
These pens will burn 4 parallel lines with each stroke. Burn one direction, then rotate 90 degrees and burn a perpendicular stroke to build a basketweave pattern $25 each
These pens will burn perfect dots quickly and neatly. Different sizes to choose from, 1.5mm to 4mm. $23 each
Adapter plug B - Use this adapter to connect a Patriot, Burnmaster, Nibsburner or Colwood pen to a Razertip Cord. To use, push one end firmly into the cord, and seat the pen firmly on the other end of the plug.
Adapter plug A - Use this adapter to connect a Razertip pen to a Patriot, Burnmaster, Nibsburner, Colwood or Detail Master cord. To use, push one end firmly into the cord, and seat the Razertip pen firmly on the other end of the plug.
BURNMASTER EAGLE, 2-PENS, 10-TIPS & BAG SET. By Mastercarver® High-performance tools!TM This uncompromising set has everything you need for maximum convenience & quality wood burning. This set includes the Burnmaster Eagle 2-Port wood burning power supply. The "Eagle" features 130-watts maximum transformer, 2-selectable handpiece power ports, 2-universal handpiece power cord / adapter sets & 2-handpiece holders. Set includes: Eagle, 2-Burnmaster® wood burning pens plus a full selection of 10-burning tips & the 779001 Mastercarver Tool Bag for storing everything!
The Burnmaster® EAGLE 2-Port wood burning power supply: Imagine a top quality wood burning system that accepts any pen (handpiece) regardless of manufacturer & has up to 130 watts of power! It's not a dream, it's the Burnmaster! The advanced design of the amazing Burnmaster is so superior it's revolutionary! Unlike others, it accepts all major pen connection systems! So instead of being forced to use just one pen brand or buying adapters, you can choose & use virtually any pen. The Burnmaster accepts wood burning pens by Leisure Time Prod. (Detail Master), Colwood (Detailer), SMC / PJL, (Optima), Nibs, Navesink, Razertip & others with similar connections. Burnmaster controllers feature, pro quality components, 130-watts max. transformer, precise variable power supply (now with micro heat adjustment), custom designed circuitry, reset fuse protection, all metal housing (3.5" x 4.75" x 8.5"), non-slip rubber feet, 6' power cord, manual & 3-year warranty. Weight: 4.5 lbs.
$275 + shipping
The Large Skew Tip allows for shading of a larger area than the regular Skew Tip Pen. $19
BURNMASTER® WOOD BURNING PEN, CORD and 10 TIPS. Do you already own a Burnmaster® or Detail Master control box but need a pen, tips, and patch cord? If so, this set includes all you need!
This set includes: The exclusive, patented 497000 Burnmaster® Wood Burning Pen. Patch cord 495001 to connect the pen to any Burnmaster or Detail Master brand wood burning control box (power supply). Set 497009 includes the 10-most useful, popular and time-proven shapes. Note: Burnmaster® brand tips are compatible with Burnmaster® wood burning pens and Detail Master version-II replaceable style handpieces (pens). Also, included is a screwdriver for replacing the tips and gender changer to allow the pen connection to a Razertip patch cord.
Pen length, 5-3/8" (135mm). Tip length: 2-1/8" (54mm). Set includes 1-Burnmaster® Pen, Patch Cord, 10-tips, Screwdriver, and Razertip patch cord adapter. 1-Year pen warranty. Burnmaster pens are designed and made in the USA.
Complete kit - $90
